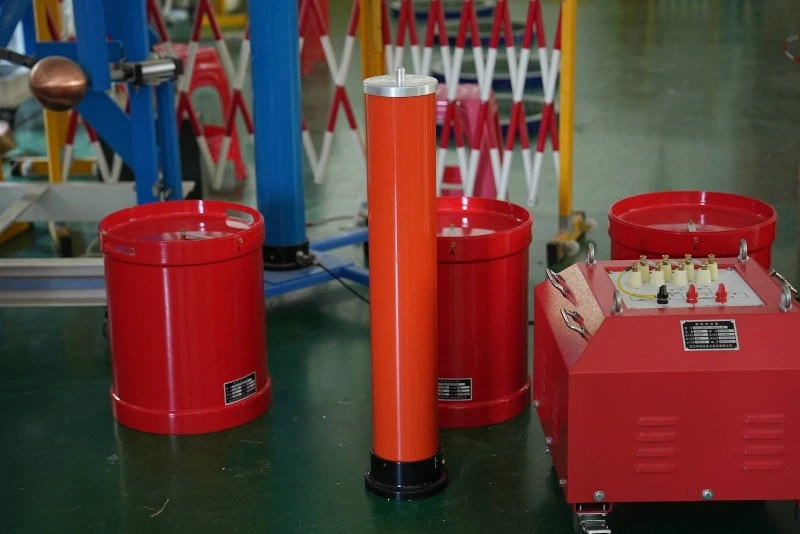

Covseries resonance xeem ntaus ntawvyog muab faib ua zaus modulation thiab inductance modulation hom, feem ntau muaj xws li ib tug txawv txav zaus fais fab mov, excitation transformer, reactor, thiab capacitive voltage divider. Cov khoom kuaj tau txuas nrog hauv series resonance nrog lub capacitor ntawm lub reactor, thiab lub voltage divider yog txuas nrog nyob rau hauv parallel nrog cov khoom kuaj los ntsuas qhov resonance voltage ntawm cov khoom kuaj thiab tsim ib tug overvoltage tiv thaiv teeb liab.
Nyob rau hauv ib tug series Circuit Court tsim ntawm resistors, inductors, thiab capacitors, thaum lub capacitance reactance xc yog sib npaug rau inductance xl, piv txwv li xc=xl, qhov voltage u thiab tam sim no i nyob rau hauv Circuit Court yog tib yam, thiab lub Circuit Court behaves raws li ib tug resistor. Qhov tshwm sim no hu uaseries resonance; Thaum ib tug series resonance tshwm sim nyob rau hauv lub Circuit Court, lub impedance Z=R ^ 2 (XC-XL) ^ 2 Tsawg dua los yog sib npaug rau R, tag nrho impedance yog minimized, thiab tam sim no mus txog nws qhov siab tshaj plaws tus nqi.
Covseries resonance xeem ntaus ntawv muaj cov nram qab no technical zoo:
(1) Lub series resonance xeem ntaus ntawv muaj overvoltage, overcurrent, xoom pib, system detuning (flashover), segmented voltage tso zis, ywj siab preset xeem lub sij hawm rau txhua qhov voltage segment, 7 -inch tseeb xim kov screen, real-time printing thiab cov ntaub ntawv cia, tso zis Circuit Court nrog contactor, kov cov zis kab tsis ua rau muaj kev ruaj ntseg ntawm hluav taws xob chaw nres tsheb, kev nyab xeeb.
(2) Overvoltage, overcurrent, ib lub sij hawm preset, txheem sine yoj tso zis, zaus tso zis ntau yam ntawm 30 Tsawg tshaj los yog sib npaug rau 300 Hz, ceev teb ntawm flashover tiv thaiv.
(3) Dav voltage ntau input, dav zaus input, 50 Hz zaus adaptive. Lub tshuab hluav taws xob thiab cov khoom siv fais fab tuaj yeem ua haujlwm ib txwm.
(4) Ua haujlwm tsis siv neeg ua haujlwm siab.
(5) Ib qho khoom siv hluav taws xob sib txawv tuaj yeem tswj tau ib txhij ntawm cov khoom siv hluav taws xob sib txawv, thiab tsuas yog ib qho ntawm lawv yuav tsum tau ua. Cov neeg siv khoom tuaj yeem yuav lub peev xwm me me ua ntej, thiab yog tias nws tsis txaus, lawv tuaj yeem yuav ntau yam khoom siv rau kev sib txuas tom qab. Tus nqi yog qhov zoo thiab siv tau yooj yim dua.
(6) Lub peev xwm thov rau cables ntawm 110 kV thiab siab dua yog qhov siab. Musen Electric txais qhov hollow core reactors, ntau txoj kev hloov pauv hloov mus rau qhov sib npaug, yuav tsum muaj ntau npaum li cas cov kev sib txuas ua ke yuav tsum tau ua, ib tus neeg ua haujlwm, yooj yim disassembly thiab sib dhos, thiab kev txav mus los, daws cov teeb meem ntawm qhov hnyav thiab kev siv.
Covseries resonance xeem ntaus ntawvyog qhov tsim nyog rau AC tiv thaiv qhov ntsuas hluav taws xob ntawm 10kV, 35kV, 110kV, 220kV, thiab 500kV polyethylene cross- txuas fais fab cables, AC tiv taus qhov ntsuas hluav taws xob ntawm GIS (tag nrho enclosed insulated substation), kev xa thiab kev tiv thaiv kev sim ntawm cov khoom muaj peev xwm loj siab nrog cov khoom siv hluav taws xob, kev siv hluav taws xob zoo {6} kuaj. Kev ntsuas hluav taws xob ntawm cov hloov pauv loj thiab cov khoom siv hluav taws xob, induction tiv taus qhov ntsuas hluav taws xob ntawm lub zog hloov hluav taws xob.
